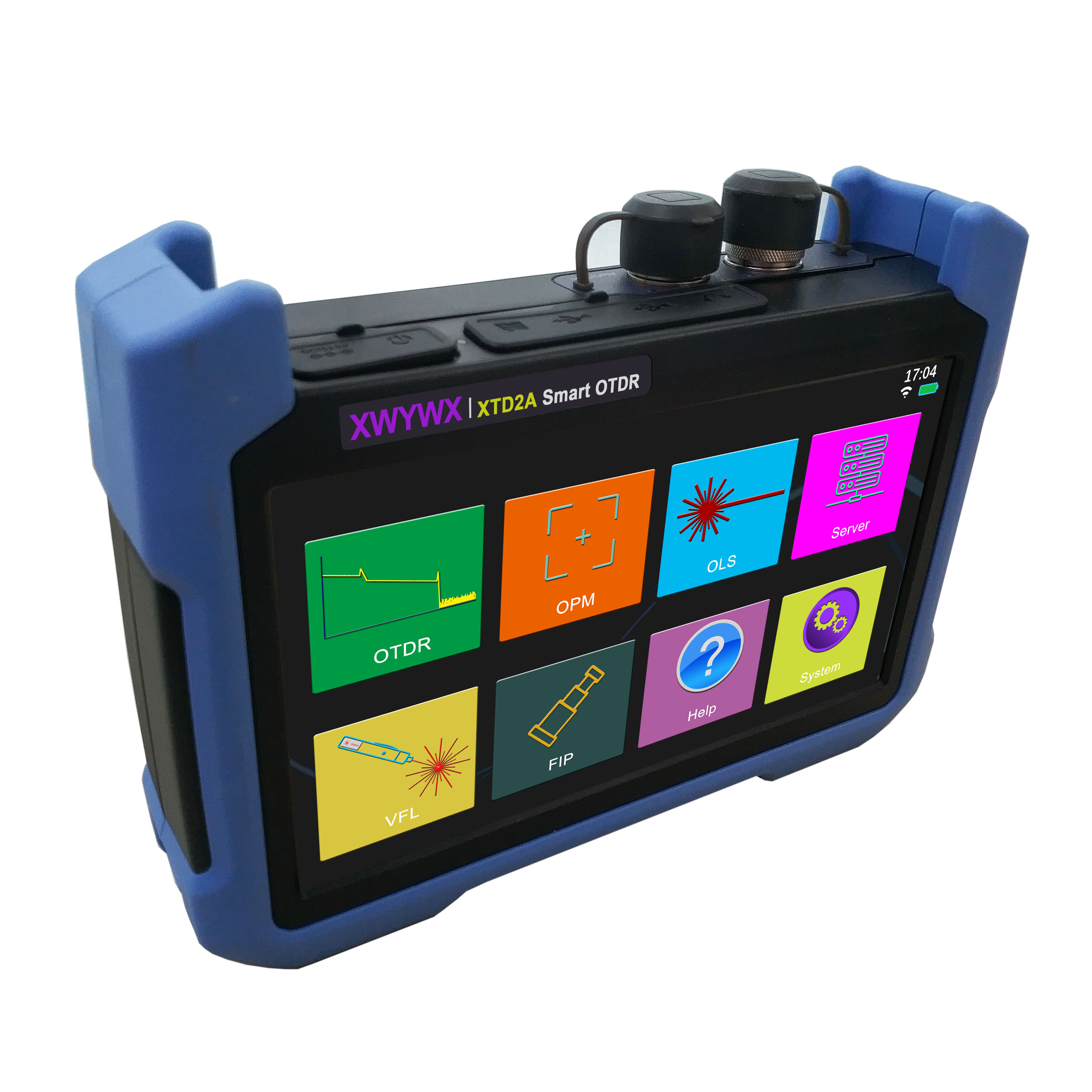

OTDR Fiber Tester

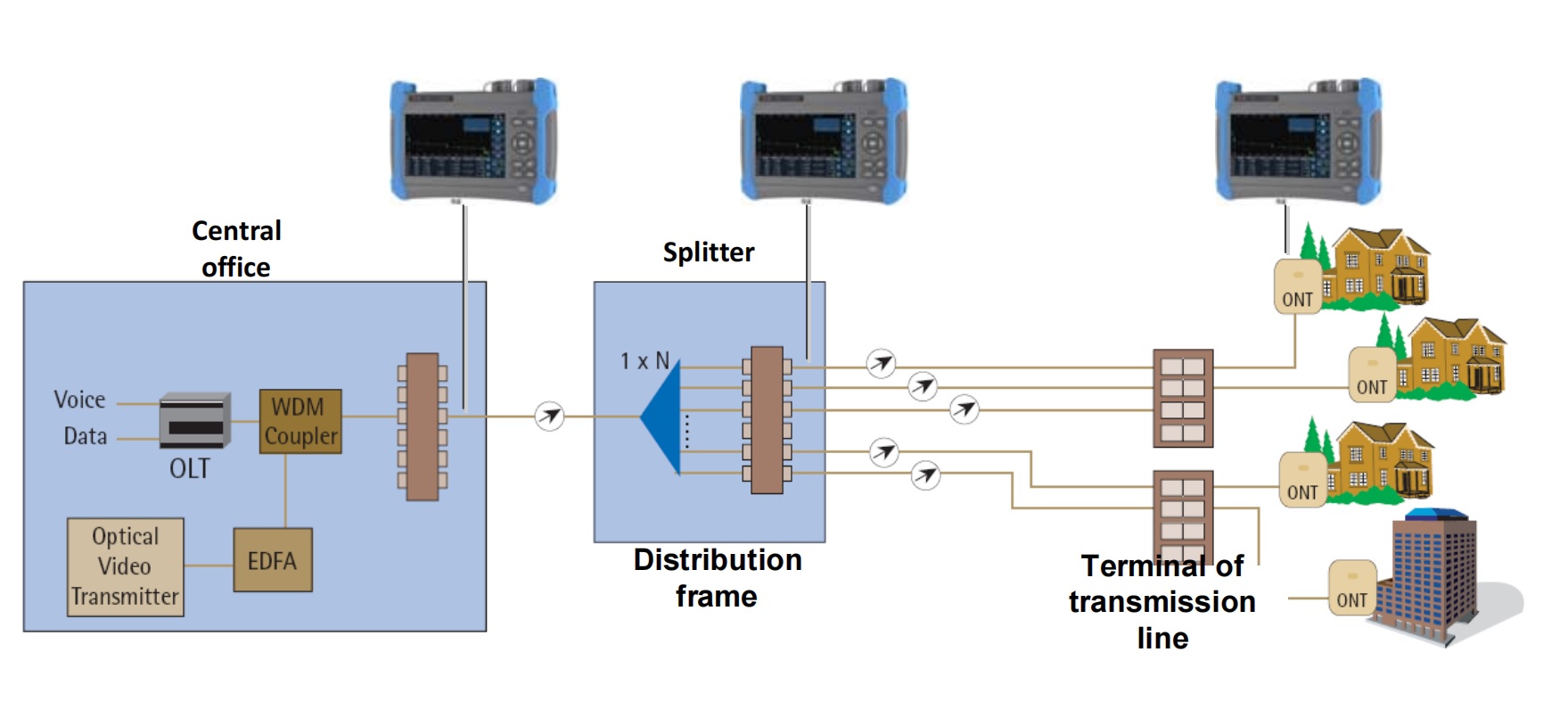

The XTD2A OTDR are 7-inch display products designed for testing PON FTTX, MAN, and long-distance optical fiber networks. Various modules including SM, MM, online testing is available, such as SM 1310nm,1490nm, 1550nm, 1625nm, 1650nm, MM 850nm, 1300nm and customized special wavelengths. The max. dynamic range is 46dB，the min. event dead zone is 0.8m and the highest sampling resolution is 2.5cm.
Multi-function options are supported such as optical power meter（OPM）, visual red light fault location（VFL）, stable laser source（LS）, fiber inspection probe（FIP）. WIFI module option is available, and the OTDR can be remotely controlled by mobile devices with self-developed APP.
Features
- Compact and light: 0.9Kg with battery
- With a dynamic range of 46dB and support maximum 256k sampling data points
- SM 1310nm,1490nm, 1550nm, 1625nm, 1650nm, MM 850nm, 1300nm and customized special wavelengths
- Unique in-line testing with optimized PON network
- Integrated SM and MM test
- Automatic monitoring of optical communication signals
- Support Bellcore GR196 and SR-4731 format file
- Rapid automatic test
- Automatic monitoring and alarm of incoming optical signals
- Fiber link event intelligent graphic display function
