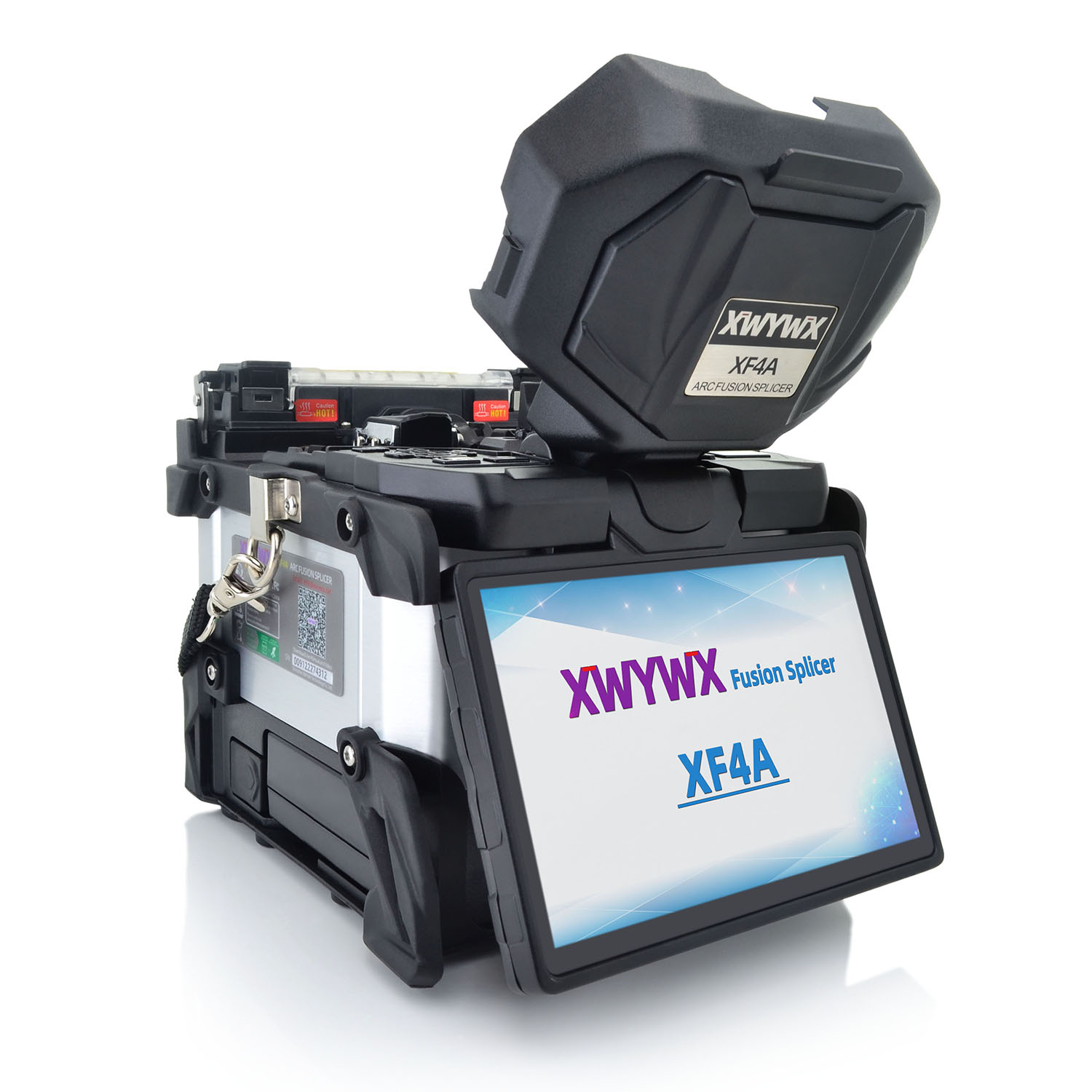

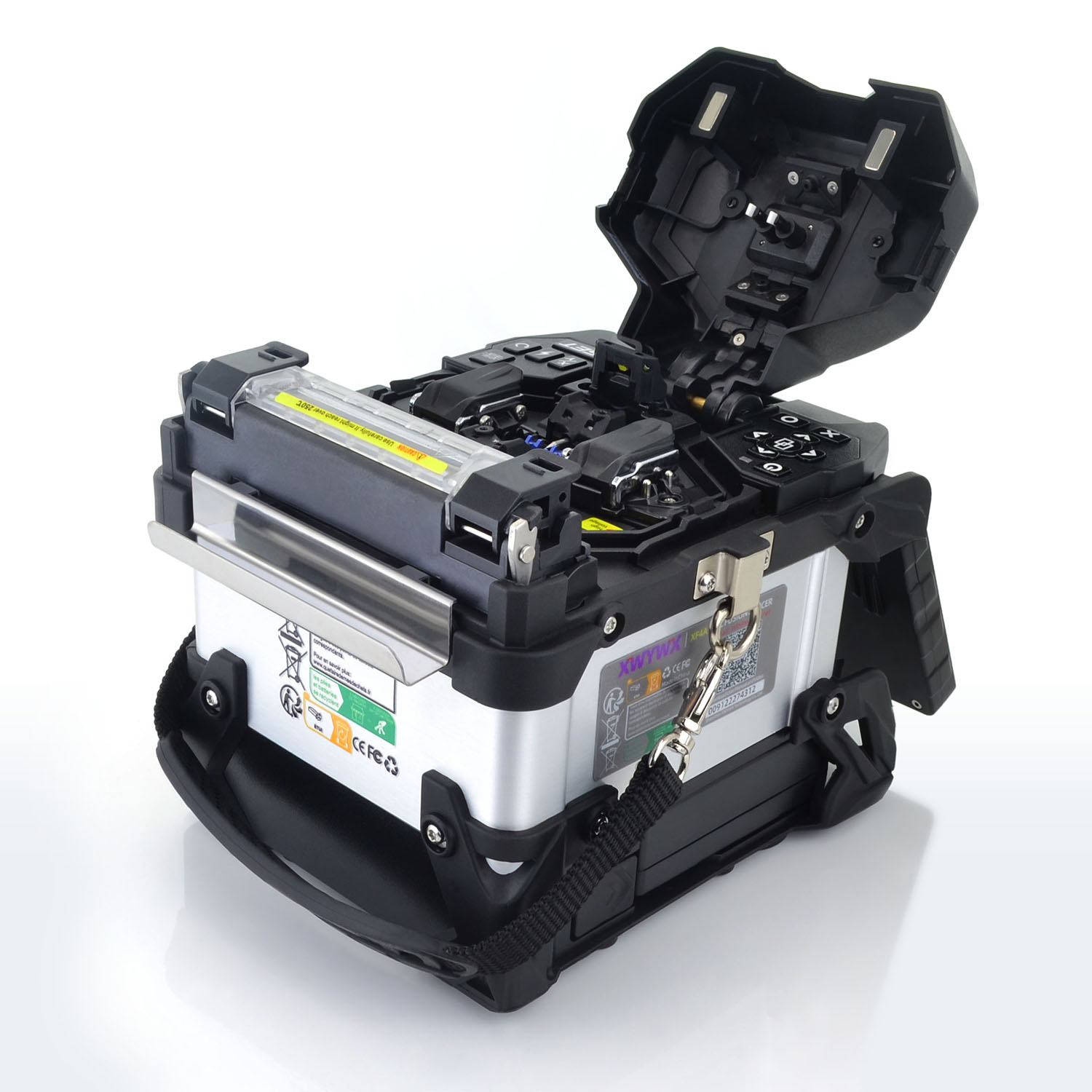

XWYWX FTTH Optical Fiber Fusion Splicer-XF4A

Sale

XWYWX FTTH Optical Fiber Fusion Splicer-XF4A

$1299.00

Faster Splicing & Heating/5-in-1 Fiber Holder/9 seconds Splicing time Fusion Splicer/18 seconds Heating Time

QTY:

SKU: XF4A

Category: Fusion Splicer

Tag: XWYWX

Professional Optical Fiber Fusion Splicer

XF4A use the latest core alignment technology with auto focus, it is a new generation of fiber fusion splicer. It is fully qualified with FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market.

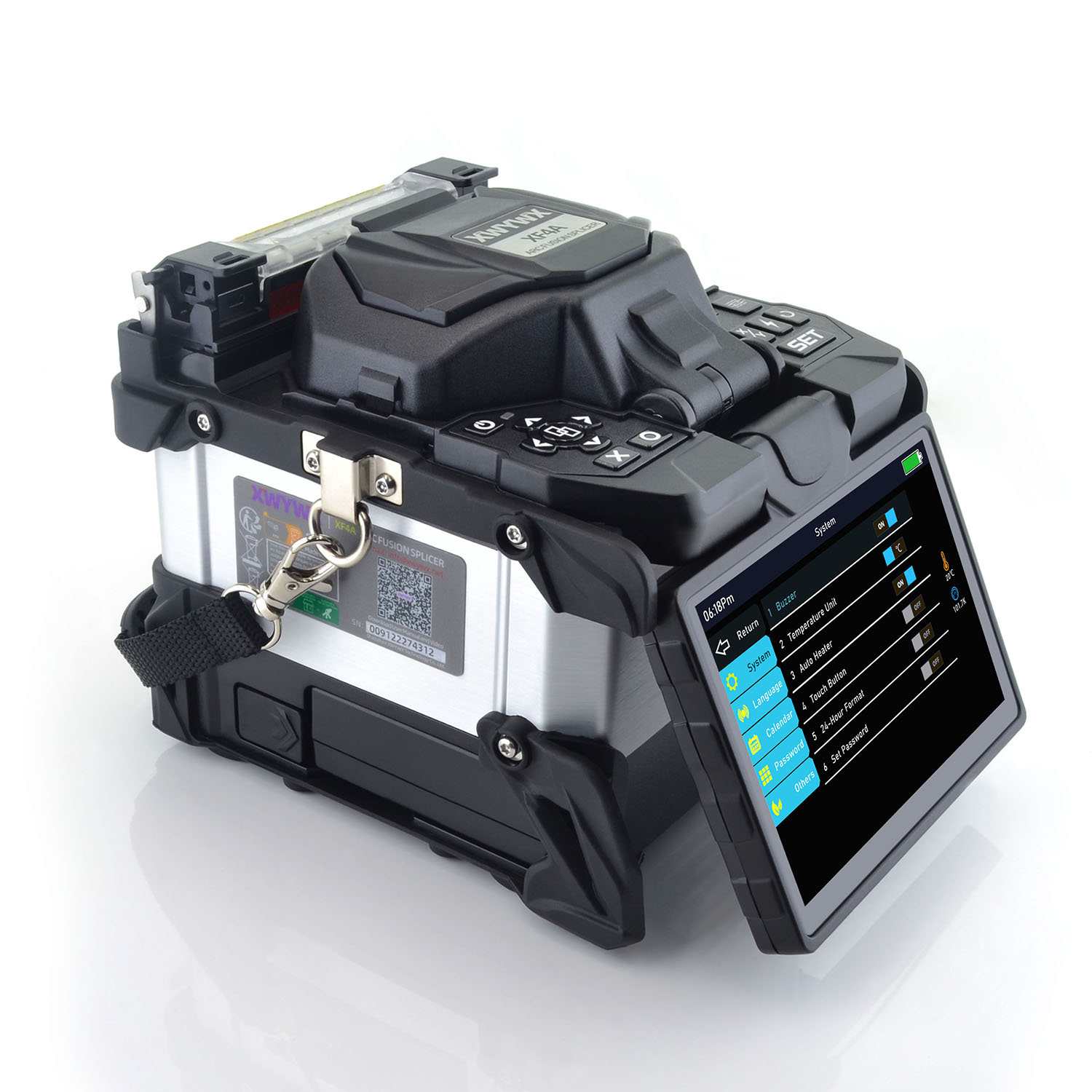

XF4A is equipped with a 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 9 seconds speed core alignment splicing, 19 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.

Features

Compact and light: 1.5Kg with battery
4 motors for precise high-quality splicing
SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), EDF splicing
One-fit-all fiber holders for bare fiber, pigtails, patch cords and FTTH indoor fiber splicing
Auto fiber end-face inspection, auto arc position adjustment, splice loss calculation, temperature and pressure compensation
Auto and manual splicing
Splicing≤9 second, heating≤25 second (time and power adjustable)
Arc counter prompts electrode change upon usage
Auto arc optimization
Auto heating
Dual V-groove for perfect fiber alignment
X/Y and X+Y display for clear fiber core image
Quick mount battery with power indicator, housed in dust and water splash proof battery dock
DC output to power external devices
Built-in illumination
Wind–dust–rain-shock proof
Graphical user interface for easy understanding and operation
Multi-language support
Optional password protection and GPS function

Aditional Information

Model	XF4A
Fiber Type	SMF(G.652),MMF(G.651),DSF(G.653),NZ-DSF(G.655),BIF(G.657),EDF
Protection Sleeve	20mm-60mm
Splicing Principle	Arc
Alignment	4 Motors Alignment
Splice Control	Auto and Manual Splicing
Arc Optimization	Yes
Display Mode	X, Y, X+Y
User Interface	Graphical interface, multiple language support
Splice Result	Auto splice result (Loss) calculation and display
Data	10000 splice records (CSV format), 100 screenshots
Data Port	USB, Driver-free
Fiber Diameter	Cladding: 80~150μm, Coating: 100~1000μm
Cleave Length	≤16mm
Splice Loss	MMF ≦ 0.01dB (Typical); SMF/BIF ≦ 0.02dB (Typical); DSF/NZDSF/EDF ≦ 0.04dB (Typical)
Return Loss	>60dB
Splice Time	≤9s
Heating Time	≤25s, Adjustable
Zoom	300x (X or Y)
Electrode Life	≥5000 splices
Tension Test	≥2N
Start-up Time	7s
Power Supply	220V±10%, 50Hz; Rechargeable Lithium Battery
Battery Life	≥200 Splicing and Heating
Chanrging Time	≤4 hours
Size	125x125x135mm (L x W x H)
Weight	1.5Kg (With Battery)
Work Temperature	-20℃～+55℃
Storage Temperature	-40℃～+70℃
Humidity	≤95% (non-condensing)
Altitude	0 m～5000 m
Wind Speed	≤15 m/s
Package List	Splicer Unitx1, Fiber Holderx1(pair), Lithium Batteryx1, Power adapterx1, Fiber Cleaverx1, Cooling Trayx1, USB Cablex1, Carry Casex1,Quick Reference
