XWYWX 1000Base-LX/LH 1.25G SFP LC SMF 1310nm 20km DDM Optical Transceiver For Cisco GLC-LH-SMD/GLC-LX-SM/SFP-GE-L, Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400
1.25G 1310nm SFP Transceiver
SFP optical modules inherit the hot-swappable characteristics of GBIC, and also draw on the advantages of SFF miniaturization. Using the LC head, its volume is only 1/2 to 1/3 of the GBIC module, which greatly increases the port density of network equipment and adapts to the trend of rapid development of the network, so it has the widest range of applications.
XWYWX S1L13D1-20-C Small Form Factor Pluggable (SFP) Transceiver is a high performance, cost effective module which has a Duplex LC optics interface, Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses 1310 nm FP laser, up to 15dB link budge ensure this module 1000BASE Ethernet 20km application.
Features
- Optical interface compliant to 1000BASE Ethernet
- Support Hot-pluggable SFP footprint
- Compatible with Cisco GLC-LH-SMD/GLC-LX-SM/SFP-GE-L, Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400
- Speeds up to 1.25Gb
- Maximum link length of 20Km on 9/125μm SMF
- Low power dissipation less than 1W typically
- All-metal housing for superior EMI performance
- Duplex LC connector
- RoHS compliant and Lead Free
- 1310nm FP transmitter, PIN photo-detector
- 2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface

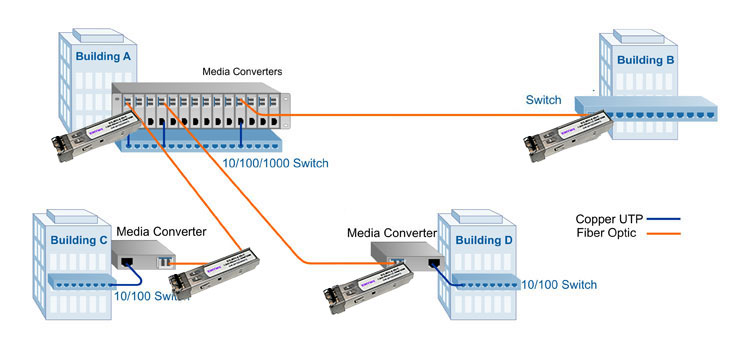

Applications
- Gigabit Ethernet
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Metro/Access Networks
- Other optical transmission systems
